Solid-State Sulfide
Li5.5PS4.5ClxBr1.5-x, D50 0.759 um is a sulfide solid electrolyte powder for cold-press conductivity screening, composite cathode studies, and solid-state battery research.
Product Details
Li5.5PS4.5ClxBr1.5-x, D50 0.759 um is a sulfide solid electrolyte powder for cold-press conductivity screening, composite cathode studies, and solid-state battery research.
Technical Selection Guide
Li5.5PS4.5ClxBr1.5-x, D50 0.759 um is a sulfide solid electrolyte grade for pressed-pellet, composite-cathode, and lithium-metal interface research. Sulfide powders can provide high ionic conductivity and cold-press densification, but measured performance depends on particle-size distribution, pressure, density, moisture exposure, phase purity, and electrode contact.
This grade should be compared with other particle-size variants under identical pressing and EIS conditions. Listed parameters include Particle size: D10 0.427 um; D50 0.759 um; D90 1.277 um; Electronic: 2.37 x 10^-6 mS/cm; Ionic: 6.5 mS/cm, cold press. Higher conductivity in a pellet does not by itself establish better composite-electrode or full-cell performance.

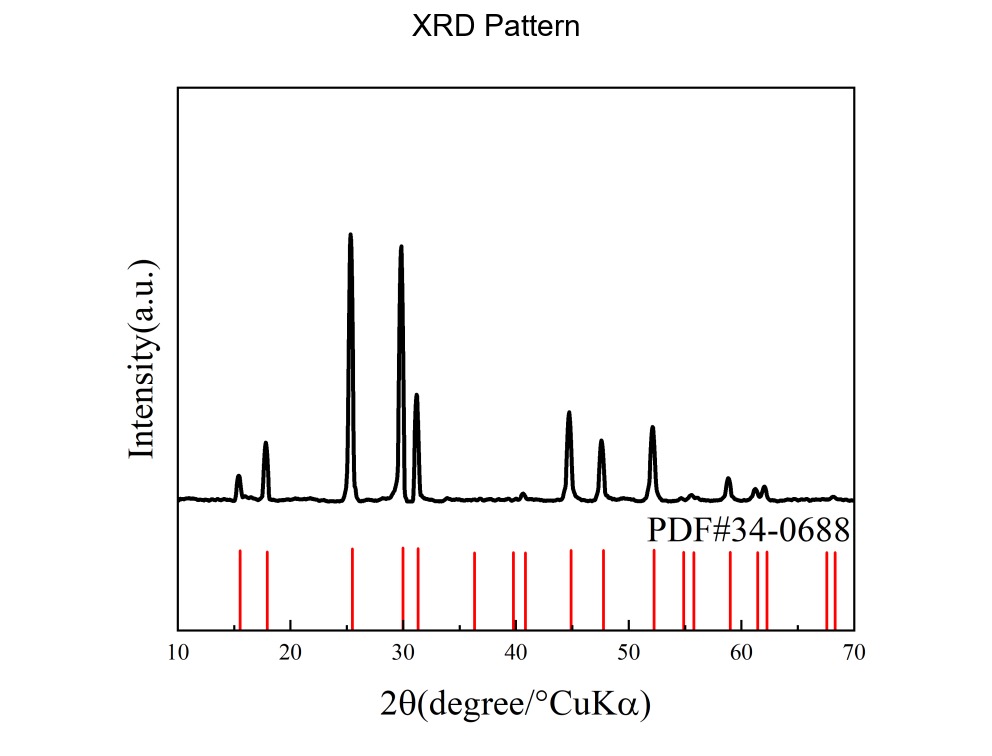

Characterization
| Parameter | Specification / Result | Method |
|---|---|---|
| Appearance | Gray-white powder, uniform color, no visible agglomeration | Visual inspection |

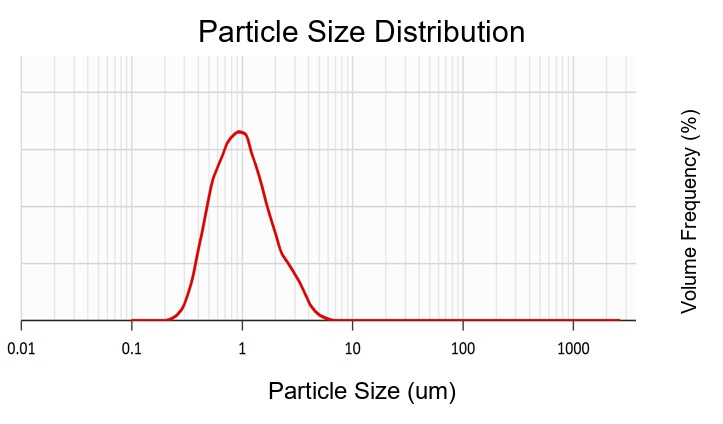

| D10 particle size | 0.427 um | Laser particle-size analyzer |
| D50 particle size | 0.759 um | Laser particle-size analyzer |
| D90 particle size | 1.277 um | Laser particle-size analyzer |
| Water | 61.6 ppm | Moisture analyzer |
| Elemental impurities | Ca 13.8 ppm; Cr 3.43 ppm; Cu 0.17 ppm; Fe 5.79 ppm; Mg 2.71 ppm; Na 24.92 ppm; K 4.1 ppm; Si 67.62 ppm; Zn 2.7 ppm | ICP |
| Ionic conductivity | 6.5 mS/cm | Electrochemical workstation |
| Electronic conductivity | 2.37 x 10^-6 mS/cm | Electrochemical workstation |
