Solid-State Sulfide
Li6PS5Cl, D50 0.734 um is a sulfide solid electrolyte powder for cold-press conductivity screening, composite cathode studies, and solid-state battery research.
Product Details
Li6PS5Cl, D50 0.734 um is a sulfide solid electrolyte powder for cold-press conductivity screening, composite cathode studies, and solid-state battery research.
Technical Selection Guide
Li6PS5Cl, D50 0.734 um is a sulfide solid electrolyte grade for pressed-pellet, composite-cathode, and lithium-metal interface research. Sulfide powders can provide high ionic conductivity and cold-press densification, but measured performance depends on particle-size distribution, pressure, density, moisture exposure, phase purity, and electrode contact.
This grade should be compared with other particle-size variants under identical pressing and EIS conditions. Listed parameters include Particle size: D10 0.445 um; D50 0.734 um; D90 1.128 um; Electronic: 2.04 x 10^-6 mS/cm; Ionic: 3.1 mS/cm, cold press. Higher conductivity in a pellet does not by itself establish better composite-electrode or full-cell performance.
Characterization
| Parameter | Specification / Result | Method |
|---|---|---|
| Appearance | Gray-white powder, uniform color, no visible agglomeration | Visual inspection |

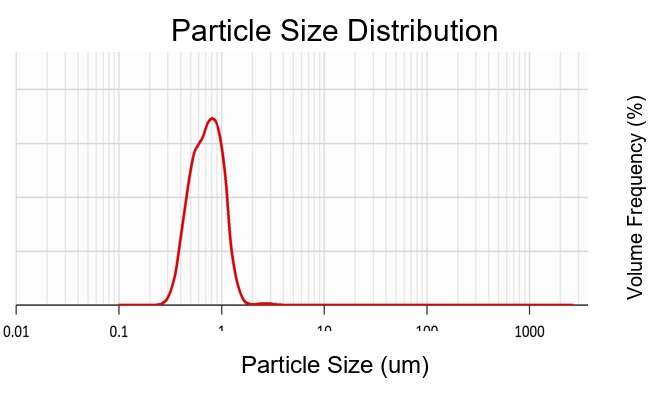

| D10 particle size | 0.445 um | Laser particle-size analyzer |
| D50 particle size | 0.734 um | Laser particle-size analyzer |
| D90 particle size | 1.128 um | Laser particle-size analyzer |
| Water | 28.8 ppm | Moisture analyzer |
| Elemental impurities | Ca 9.64 ppm; Cr 2.01 ppm; Cu ND; Fe 15.03 ppm; Mg 0.59 ppm; Na 27.61 ppm; K 2.5 ppm; Si 28.26 ppm; Zn 1 ppm | ICP |
| Ionic conductivity | 3.1 mS/cm | Electrochemical workstation |
| Electronic conductivity | 2.04 x 10^-6 mS/cm | Electrochemical workstation |
